Our Facilities
  • n
  • p

  • CNC
    Laser Machine
    Fiber Laser Cutting Machine

    Fiber Laser Cutting Machine
    Model: Han's Laser G3015HF
    Laser Source: 6000W
    Working Range:  1524mm x 3048mm
    (5ft x 10 ft)
    Thickness Range:
    Mild steel - Max. 20mm
    Stainless steel - Max. 12mm
    Aluminium - Max. 10mm

    Tube Cutting Laser Machine

    Tube Cutting Laser Machine
    Model: Han's Laser P6018D-IPG Laser Tube Cutter
    Laser Source: 2000W
    Working Range:
    Mild Steel - Max. 8mm
    Stainless Steel - Max. 5mm
    Aluminium - Max. 5mm
    Material:
    6 meter
    - Equal Hollow
    - Unequal Hollow
    - Tube pipe obround
    -  C-channel
    - Angle Bar

  • CNC
    Punching Machine
    Punching Machine

    Turret Punch Machine
    Model: TruPunch 1000
    Maximum
    Working Range:    		 X:2500mm,
    Y:1250mm
    Maximum Punching
    Force:     		 165KN


  • CNC
    Bending Machine
    Bending Machine

    Bending Machine
    Model: NCP200-32
    Bending Range: 3200mm
    Capacity: 200 tons
    Type:
    4 axes CNC Hydraulic
    2 axes Backgauge system
    CyberTouch 12 Controller

    Bending Machine

    Panel Bender
    Model: Salvagnini P2 Lean
    Panel Dimension: L280mm x W119mm - Min.
    L2180mm x W1524mm - Max.
    Height - Max. 165mm
    Thickness Range: Mild steel - Max. 3.2mm
    Stainless Steel - Max. 2.5mm
    Aluminium - Max. 4mm
    Capacity: 80 tons

    Bending Machine

    Bending Machine
    Model: FMB II NT 1025
    Bending Range: 2500mm
    Capacity: 980KN
    Type:
    7 Axes CNC Hydraulic
    Slimming Royalty
    Machine

    Bending Machine

    Bending Machine
    Model: FMB II - 3613 NT
    Bending Range:
    1300mm
    Capacity:  360KN
    Type:
    7 Axes Servo Electric CNC
    Press Brake Bending

    Bending Machine

    Bending Machine
    Model: HDS 1303 NT
    Bending Range:
    3100mm
    Capacity:  1425KN
    Type:
    8 Axes CNC Hydraulic
    5 Axes Backgauge
    AMNC- PC Control


  • CNC
    Machine
    CNC Double Column Vertical Machining Center

    CNC Double Column Vertical Machining Center
    Model: "Hartford" PRO - 3210 AG
    Spindle
    Speed Range:    		 6000rpm
    Working Range:  X 3000mm
    Y 2000mm
    Z 1070mm
    Table Size:  3200mm x 2200mm

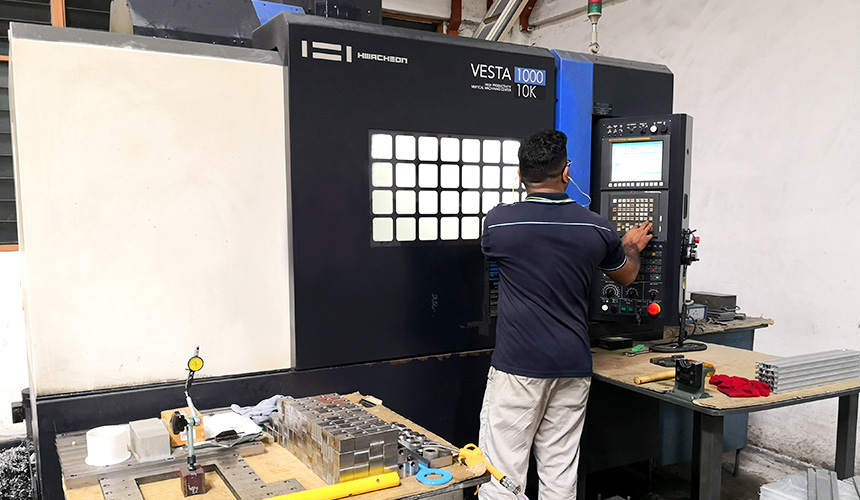

    CNC Vertical Machining Center

    CNC Vertical Machining Center
    Model:
    Hwacheon Vesta
    - 1000/10K
    Spindle
    Speed Range:    		 10,000rpm
    Working Range:  X 1000mm
    Y 550mm
    Z 500mm
    Table Size:  502mm x 1100mm

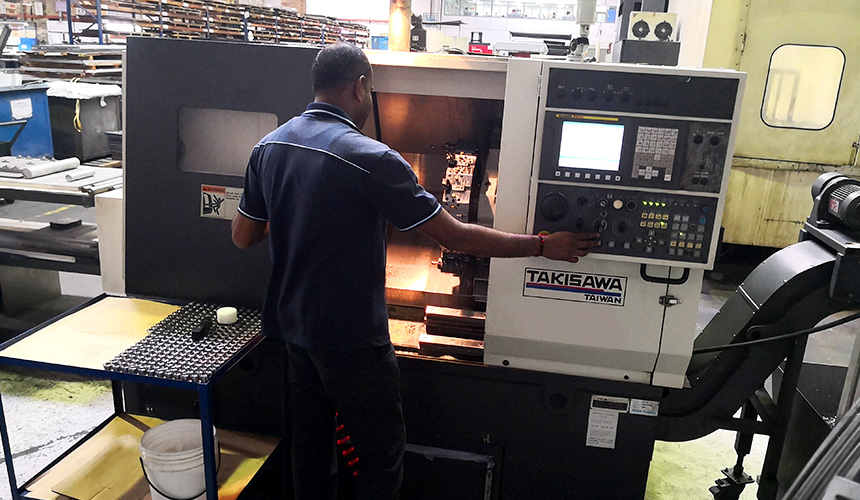

    CNC Lathe Machine

    CNC Lathe Machine
    Model: Takisawa NEX - 108
    Turning Speed: 4000rpm
    Turning Length: 481mm
    Working Range:
    X 180mm
    Y 530mm


  • Robotic Welding
    Machine
    Dyna Robotic

    DYNA ROBOTIC / OTC DAIHEN
    Model: D6-1510N / AX-V4 AP
    Axis: 6
    Payload: 6kg /4 kg
    Repeat ability:
    ±0.08mm
    Weight:
    172kg / 160kg
    Welding machine:
    Megmeet Heave CM350 / OTC Digital Inverter DM 350
    Use environment:
    0-45°C, 20-80% (No Condensation)

  • Fiber Laser
    Welding Machine
    Fiber Laser Welding Machine

    Fiber Laser
    Welding Machine
    Model: HGLW/HGLC-1500E, ML-WF-BP-SCB-JW1500, ACL 1500W
    Laser Power: 1500 W
    Voltage: AC 220V
    Frequency:
    50 HZ
    Quantity:
    6 units
